Kukko K-22-A Bearing Extracting Set With Counterstay and Slide Hammer (Bore Range - 1/4" to 1 3/16")
For extracting inner bearings, bearing outer rings and bushings. Bore ranging from 1/4" to 1 3/16".
Description
- Use of the internal extractor in combination with slide hammers or counter stays.
- The 2-shell design with extra large grasp edges ensures safe extraction.
- The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading.

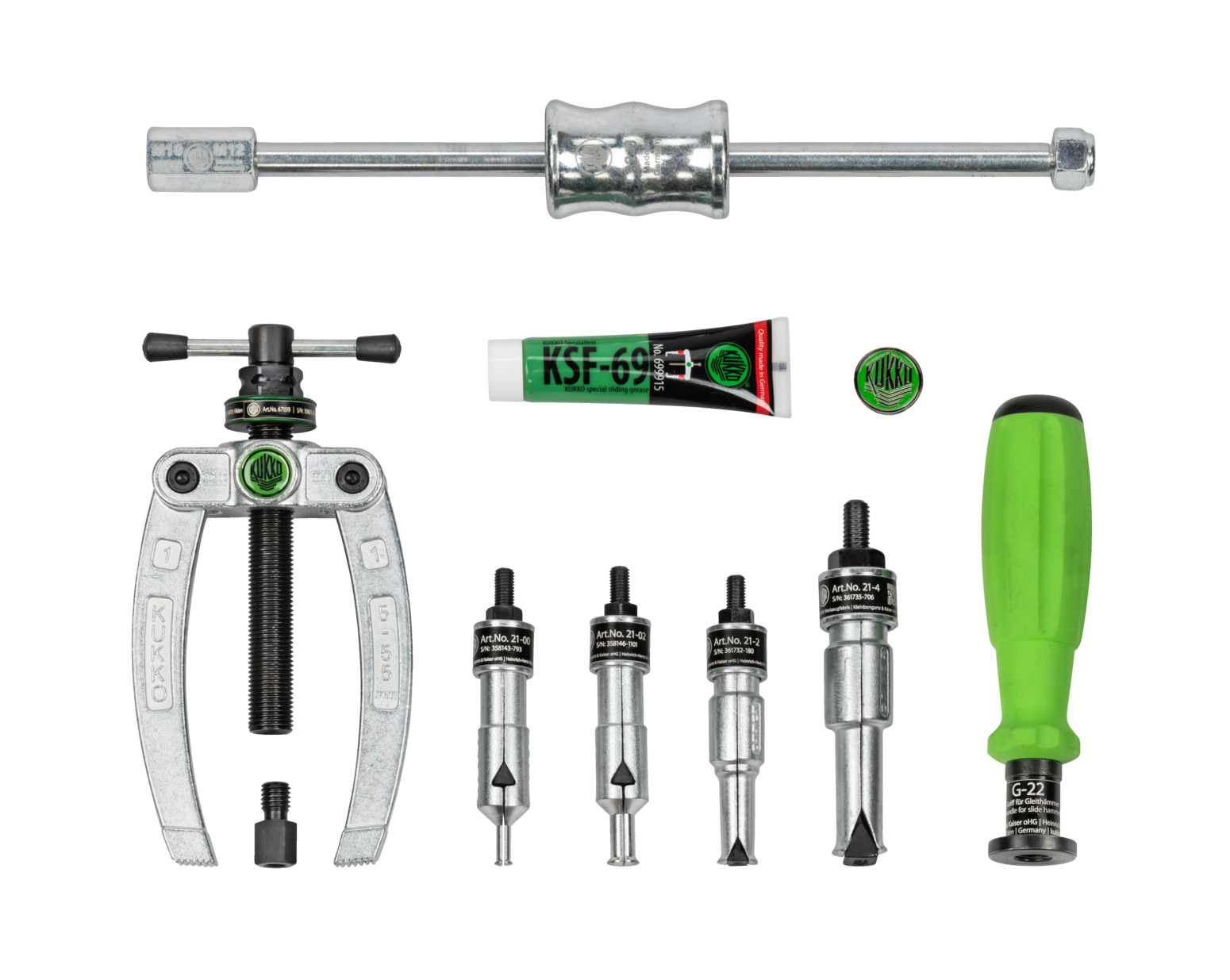

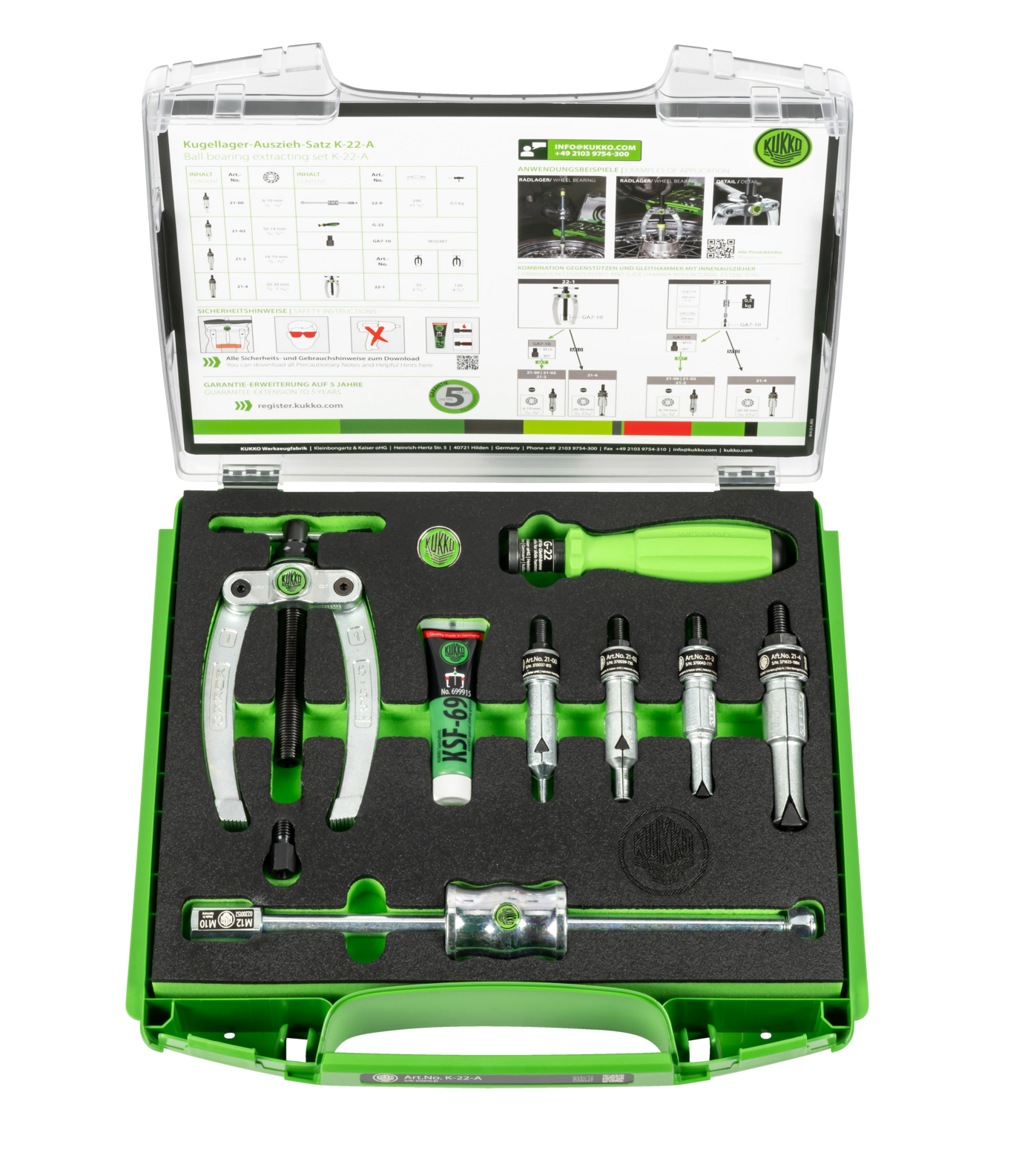

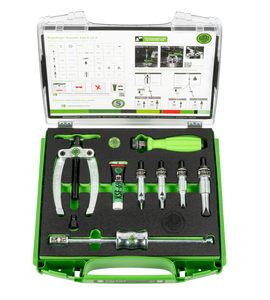

Contents:
Internal Extractors - 21-00, 21-02, 21-2, 21-4
Slide Hammer - 22-0 with G-22 handle
Counterstay - 22-1 with adapter M7 / M10
Advantage
- Practical package for universal use.
- Thanks to the Kukko modular system, the counterstay and the sliding hammer can be combined and subsequently completed with segmented internal extractors, needle bearing extractors, threaded inserts, etc.
- The arms on the counter supports are easy-to-adjust thanks to an internal spring mechanism. (size 1 to 3)
How it works
- Screw the internal extractor or the threaded insert into the component.

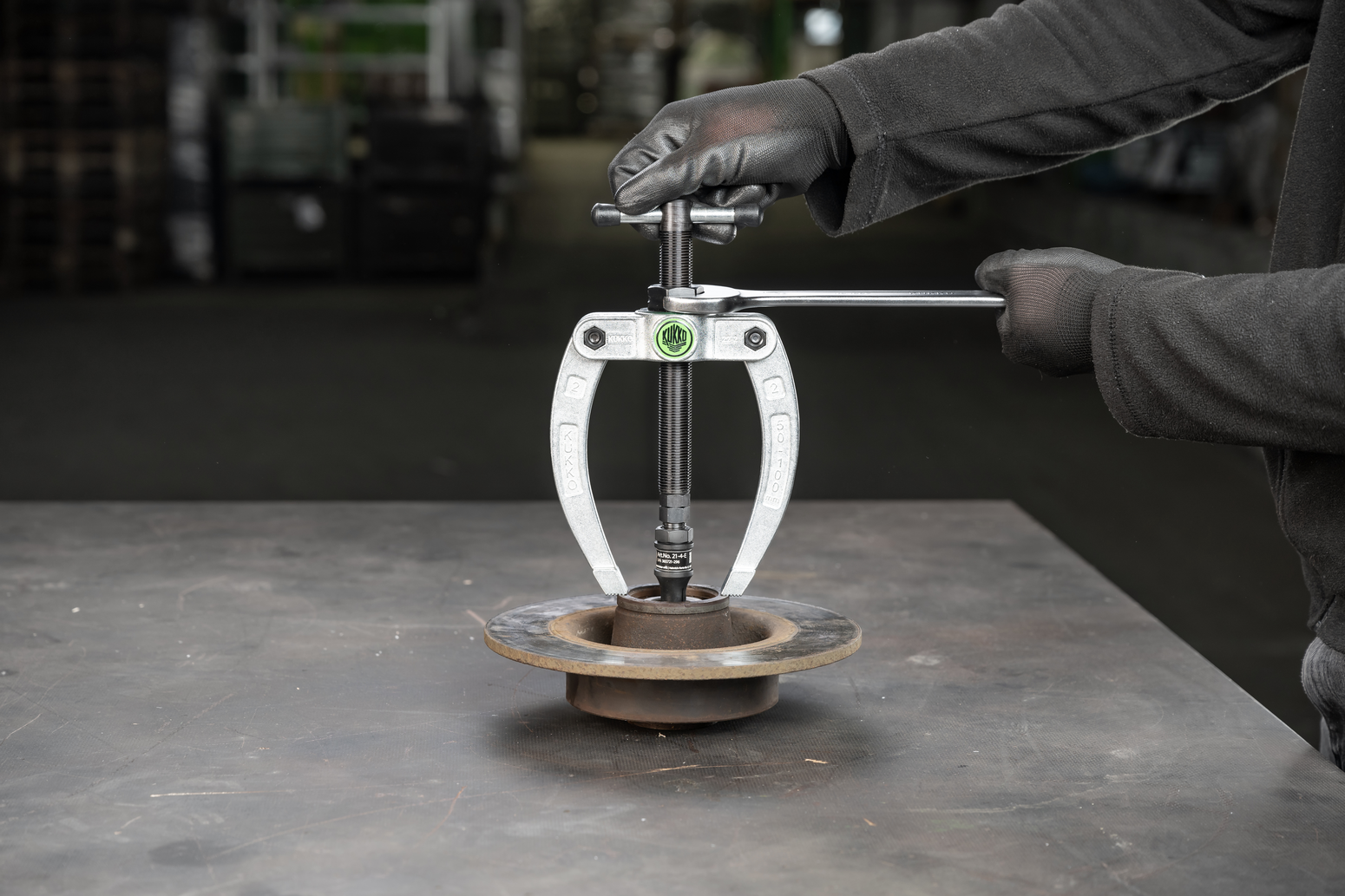

- For removal, the spindle on the counter support is screwed onto the internal extractor or the threaded pin.
- Counter support's arms must not block the part due to be removed. Make sure that the arms are parallel.
- Hold on to the T-grip and at the same time use the jaw wrench to tighten the nuts above the cross-beam until the component has been loosened from its position.

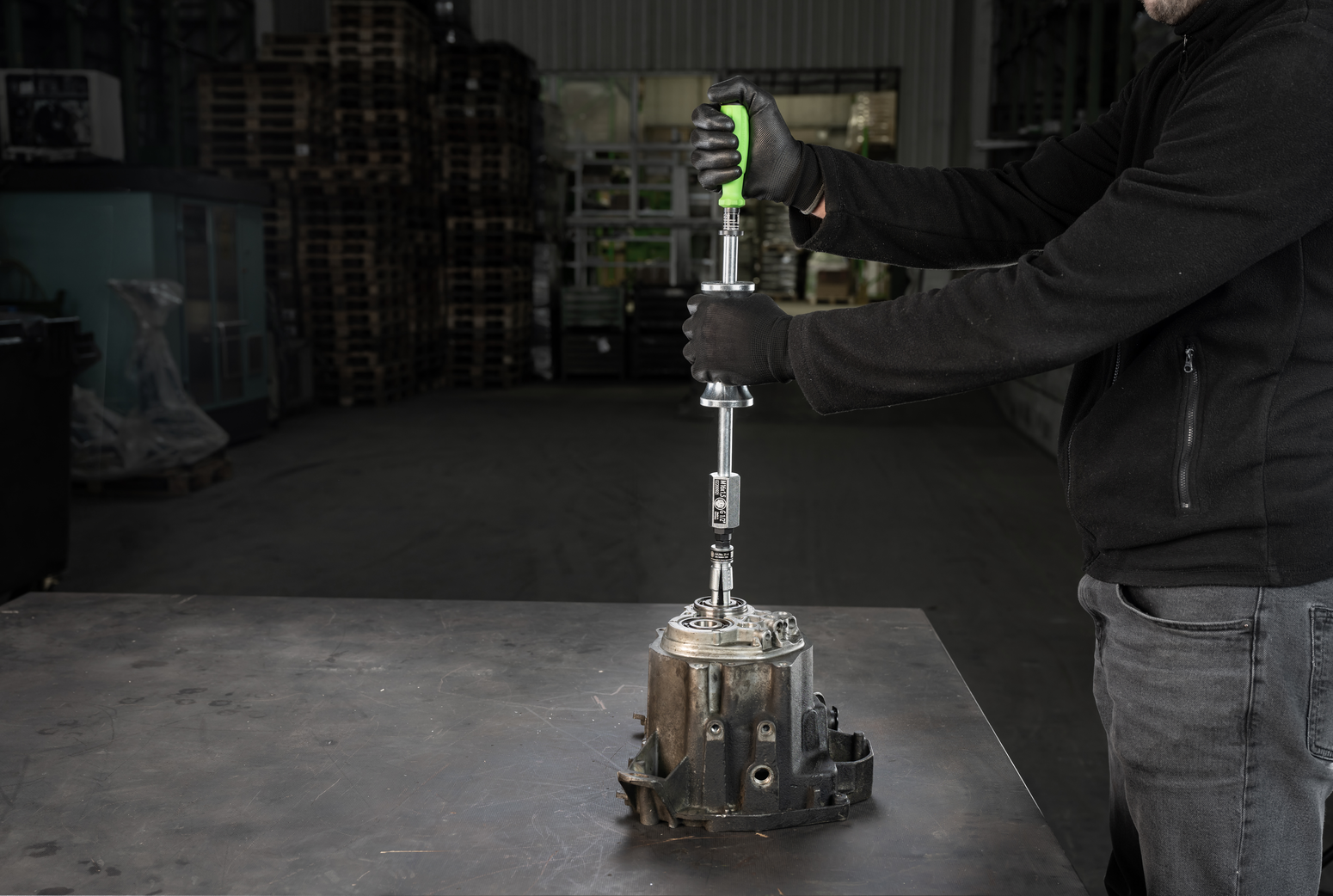

- For removal, the threaded rod on the slide hammer is screwed onto the key spindle on the internal extractor or threaded insert using the adapter.
