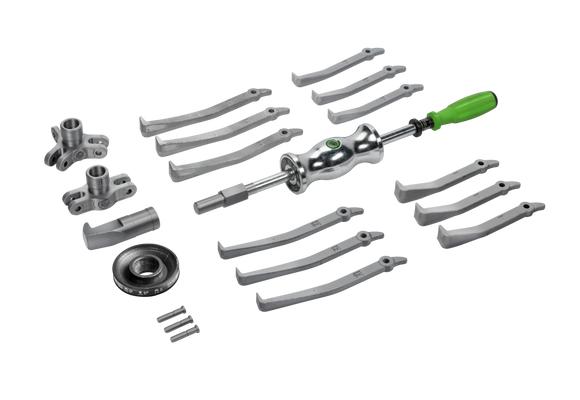

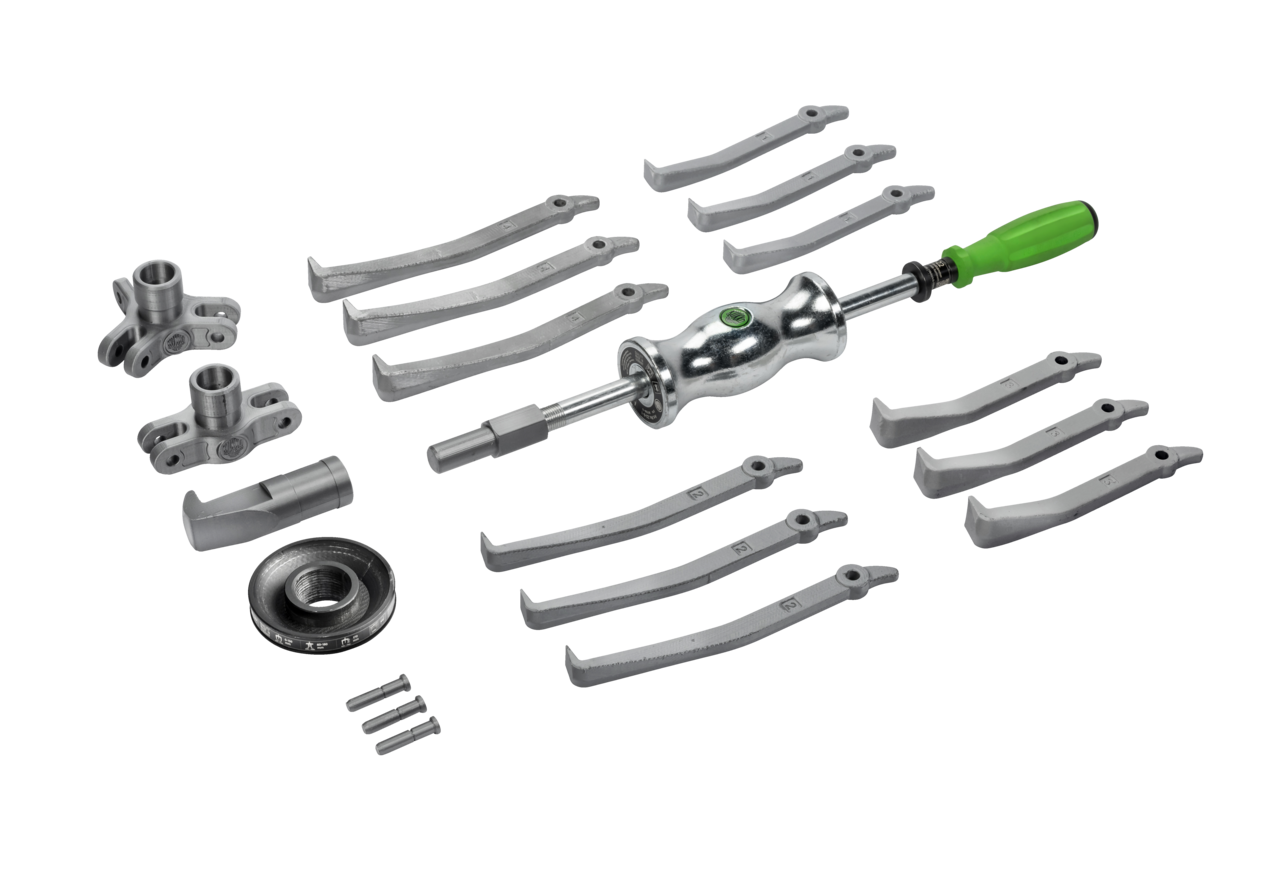

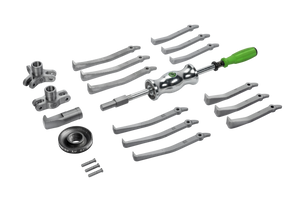

Kukko 224-178 Slide Hammer Puller Set - 21 piece

Kukko 224-178 21-Piece Universal Puller Set with Slide Hammer – Internal & External Bearing, Gear, and Disc Removal

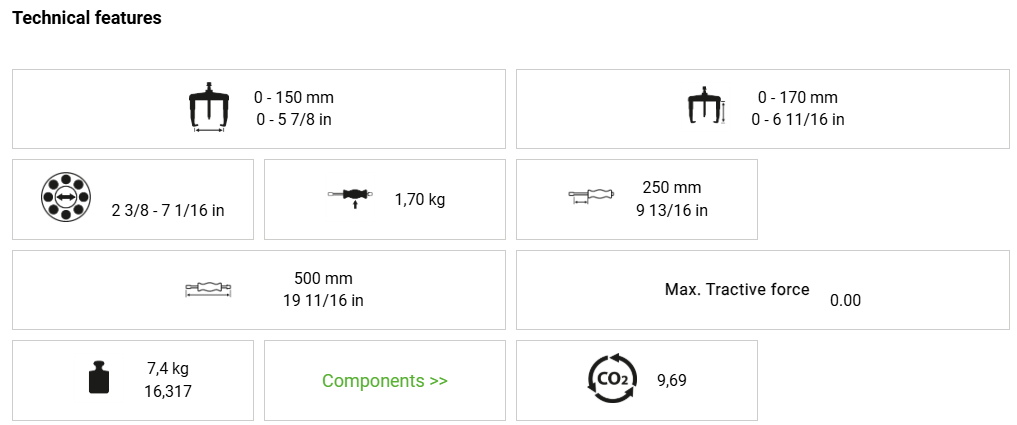

Data Sheet

The Kukko 224-178 Universal Puller Set is a professional-grade 21-piece kit designed for the precise and damage-free removal of bearings, gears, bushings, and discs in a wide range of sizes. Ideal for mechanics, maintenance technicians, and industrial service professionals, this set is engineered for maximum versatility and control in demanding applications.

Featuring interchangeable puller jaws and a precision clamping cone, this system automatically centers during tightening and allows for quick adjustment of the spread. The jaws can be reversed for both internal and external pulling applications, making this one of the most flexible kits in its class.

When a support surface isn’t available, the included slide hammer enables clean, contact-free extraction—perfect for confined or blind hole work.

Key Features:

• 21-Piece Complete Kit – Covers a wide range of pulling tasks in automotive, workshop, and industrial settings.

  • External Pulling Range: up to 150mm (5 7/8 inch)
  • Maximum Pulling Arm Reach: 170mm (6 11/16 inch)
  • Internal Pulling Range: 2 3/8 inch to 7 1/16 inch)
  • Slide Hammer Weight: 1.7 Kg (3.75 lbs.)

• Dual Functionality – Easily converts from internal to external puller by reversing the jaws and clamping cone.

• Self-Centering System – Clamping cone centers the jaws automatically and allows pre-tensioning to prevent slippage.

• Gentle, Non-Damaging Removal – Slide hammer enables smooth extraction without requiring a backing surface.

• Made in Germany – Engineered with the quality, precision, and durability professionals trust.

Applications:

• Removal of bearings, gears, discs, sleeves, and bushings

• Ideal for use in engines, gearboxes, machinery, and motor housings

Includes:

• Multiple sizes of puller jaws for various applications

• Slide hammer for non-contact extraction

• Clamping cone and accessories in a fitted carrying case

Get the job done right with the Kukko 224-178 Puller Set—the ultimate solution for internal and external extraction without compromise.

Includes: 221-3, 22-0+17, 220-1-T, 221-1-T
