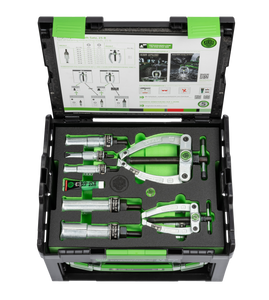

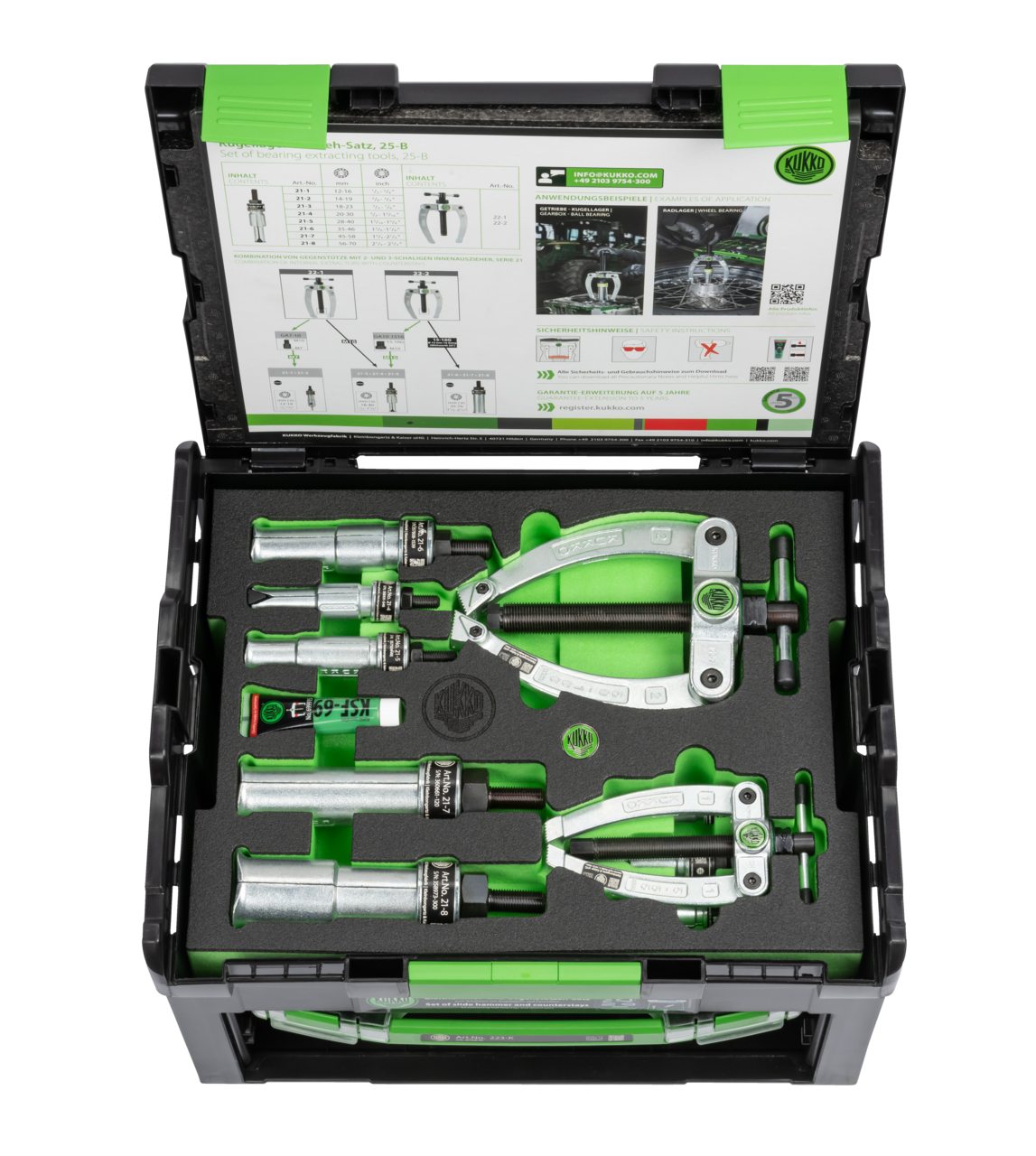

Kukko 28-D contents of bearing puller set

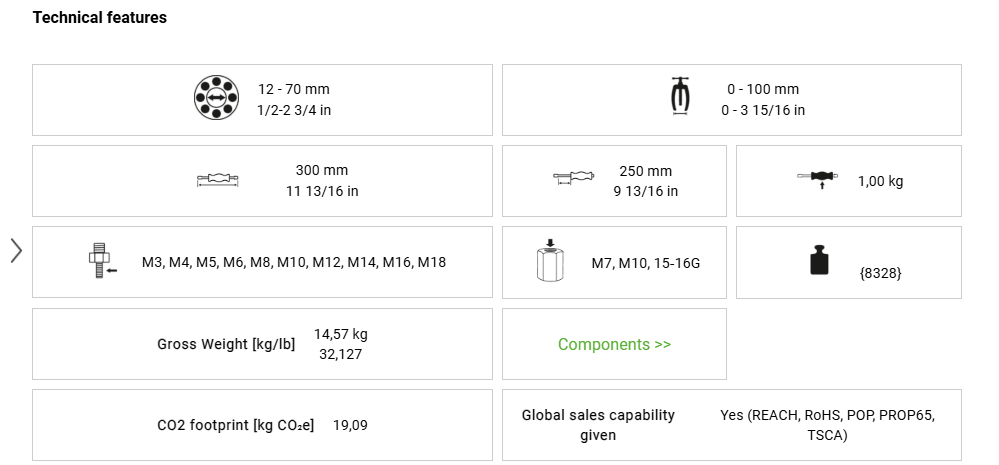

Kukko 28-D technical information

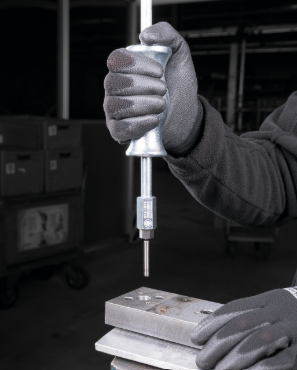

Kukko dowel pin puller setup

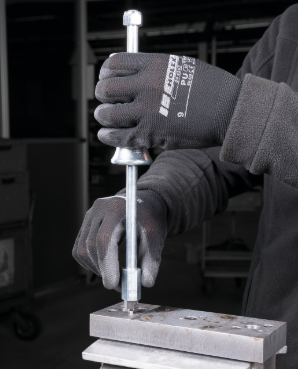

Kukko dowel pin puller with slide hammer
Kukko 28-D Puller Set - 24pc Slide Hammer & Counter Stay Kit (12mm to 70mm)

Kukko 28-D Puller Set - 24pc Slide Hammer & Counter Stay Kit (12mm to 70mm)

Kukko Quality Tools

Kukko 28-D Puller Set – 24-Piece Sliding Hammer and Counter Stay Kit (Ø 12–70 mm)

Data Sheet

The Kukko 28-D Puller Set is a professional 24-piece extraction kit designed for the non-contact removal of internal bearings, bearing outer rings, bushings, and threaded components such as dowel pins, bolts, and key steel. Built for craftsmen, workshop technicians, and industrial maintenance teams, this set offers maximum versatility and controlled performance for demanding extraction tasks.

Equipped with both a sliding hammer and a counter stay, the 28-D set gives users the flexibility to adapt to various working conditions—whether or not a stable support surface is available. The precision-engineered internal extractors feature a multi-shell design with oversized gripping edges, ensuring a secure and damage-free hold on components during extraction. Threaded inserts are also included for removing parts with concentric internal threads.

Key Features:

  • Wide Extraction Range: Covers internal diameters from Ø 12 to 70 mm

  • Dual Tooling Options: Use the sliding hammer or counter stay depending on application constraints

  • Secure Multi-Shell Extractors: Extra-large gripping edges for reliable hold and safe removal

  • Thread Insert Capability: Easily remove threaded components using included adapters

  • Heavy-Duty Construction: Built for repeat use in high-demand environments

Perfect For:

  • Internal bearings, outer rings, and bushings

  • Dowel pins, feather keys, bolts, and other threaded components

  • Automotive, mechanical, and industrial repair or assembly work

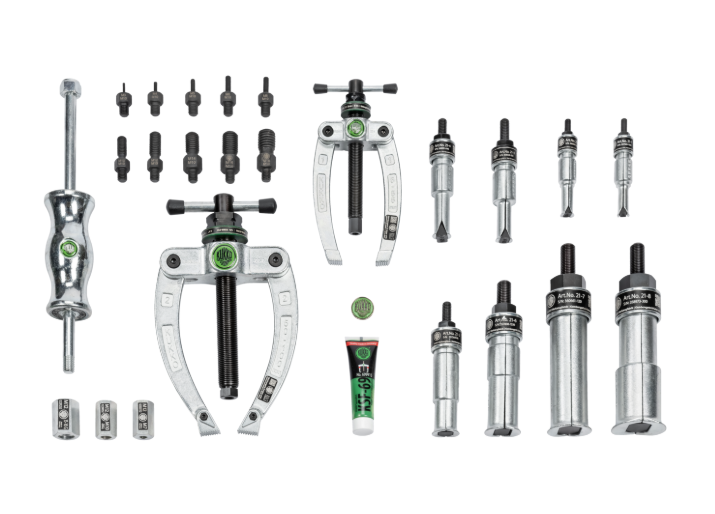

What’s Included:

  • Sliding hammer: 22-0-17

  • Counter stay devices: 22-1 & 22-2

  • Internal extractors (Ø 12–46 mm): 21-1, 21-2, 21-3, 21-4, 21-5, 21-6, 21-7, 21-8

  • Threaded inserts for threads: M3,M4,M5,M6,M8,M10,M12,M14,M16 & M18

  • Robust carrying case for organized storage and transport

With German-engineered precision and unmatched versatility, the Kukko 28-C Puller Set is the go-to solution for professionals who need safe, efficient, and adaptable internal extraction tools in one complete package.
