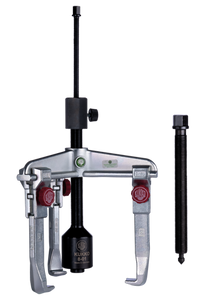

Kukko 30-2+B Universal 3-jaw puller with long hydraulic spindle and quick adjusting jaws

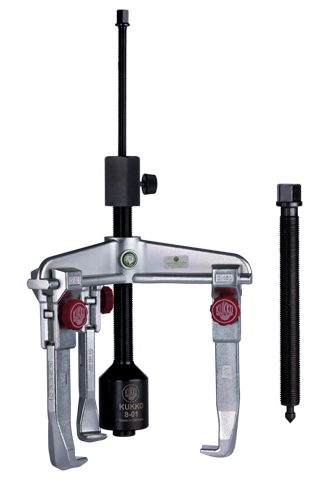

Kukko 30-3+B Universal 3-jaw puller with long hydraulic spindle and quick adjusting jaws (Up to 9 7/8" OD and 7 7/8" Reach)

Kukko Quality Tools

  • $1,389.20
    Unit price per

For pulling particularly tight bearings, gears, discs, etc.


  • Grease hydraulics.
  • Standard pulling hook with quick adjusting jaws using thumb screws.
  • Parallel pulling hooks in every position, even with full load.


  • Easy and even pulling for particularly tight parts.
  • A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
  • Optional conversion to various jaw types for mechanical use.

External Pulling Max. Diameter - 9 7/8"

Internal Pulling Range - 7 1/8" to 13 3/8"

Pulling Reach - 7 7/8"

Pulling Force - 11 tons

How it works

  • The puller must be positioned centrally for center shafts. If the shaft is not sitting centrally, the parts can be removed asymmetrically with pullers with parallel pulling hooks.
  • Assembly instructions for the hydraulic spindle: 1. Loosen the side screw and unscrew the cap from the spindle body.
  • Screw the spindle body into the cross-beam from below until the spindle body sticks out of the cross-beam by approx. 60 mm.
  • Before use, check whether the pressure spindle is screwed far enough out of the cap so that the hydraulic piston is located in the initial position in the hydraulic cylinder.
  • Operating the upper spindle using the torque wrench will provide the force required for pulling.
