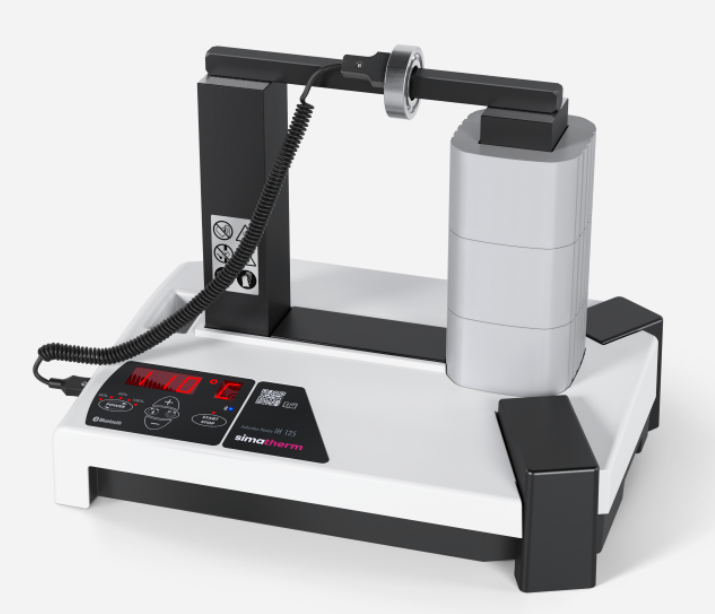

Simatherm IH 125 Bearing Induction Heater - Heats up to 330 lbs.

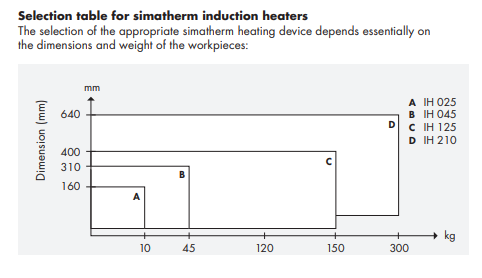

The IH 125 is suitable for heating small and medium-sized bearings and hubs up to 150 Kg or 330 pounds. For bearings with an inner diameter of 20mm to 400 mm.
- Connectivity with the "simatec World of Maintenance" app
- Remote control
- Up to 150 Kg or 330 pound workpieces
- Bore range of 20 mm to 400 mm
- Heat in time or temperature mode (with included magnetic temperature probe)
- Optional second temperature probe allows monitoring both inner and outer ring temperatures
- Can be used on sealed and greased bearings
- Optional swivel arm
- 480V standard (6.4 kVA)
- 8-stage power settings
- Approximate max temperature 250C (482F)
- 3 yokes supplied as standard (55x55mm, 28x28mm & 14x14mm)

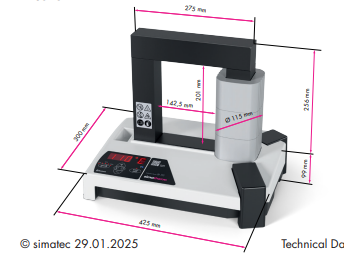

- Size of operating area (rectangular area between yoke, upright bar/coil and body of heater) 142mm x 201mm (5.61" x 7.91)
- Only 35 Kg or 77 pounds in weight (including yokes)
- Automatically demagnetizes the bearing after heating
- 3 year manufacturer warranty
- Suitable for continuous use (integral cooling fan)
- Can heat a 28 Kg (62 lbs.) bearing from 20 degrees C (68F) to 110 degrees C (230F) in 3.5 minutes
- Recommended accessory - Simatec Bearing Handling Tools
